And now, Let’s start with a 3D model… this is not very simple thou…

First of all we have a flat /2D scenary at GE, no much more than 50 cm of resolution. The place is very close to Madrid downtown, a very big neighborhood called Moratalaz…we will find there two very big towers of about 50 meters high:

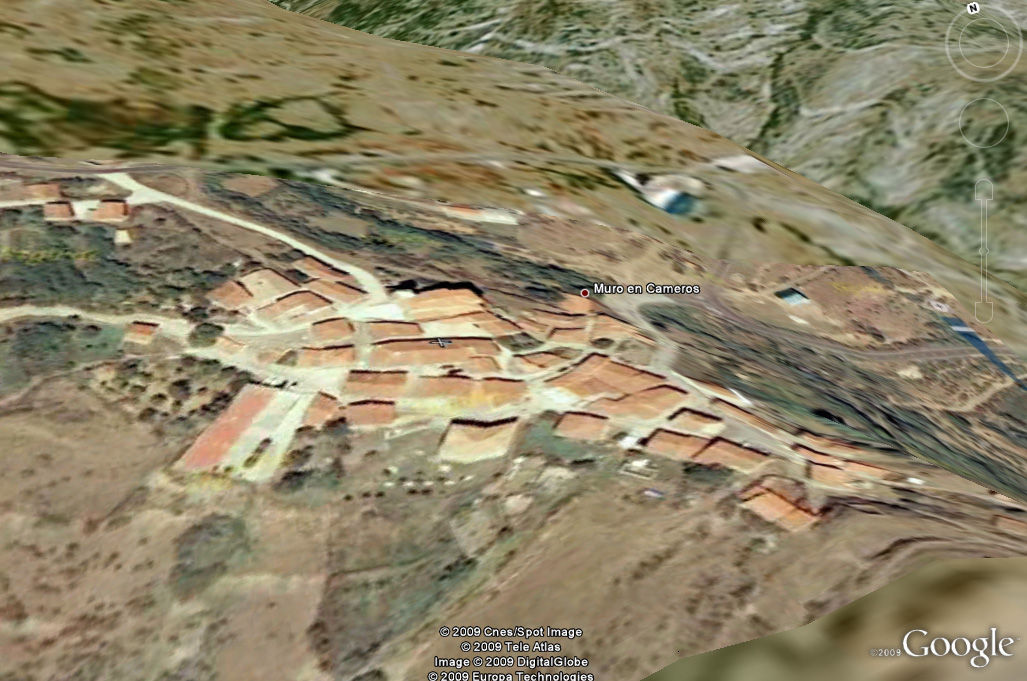

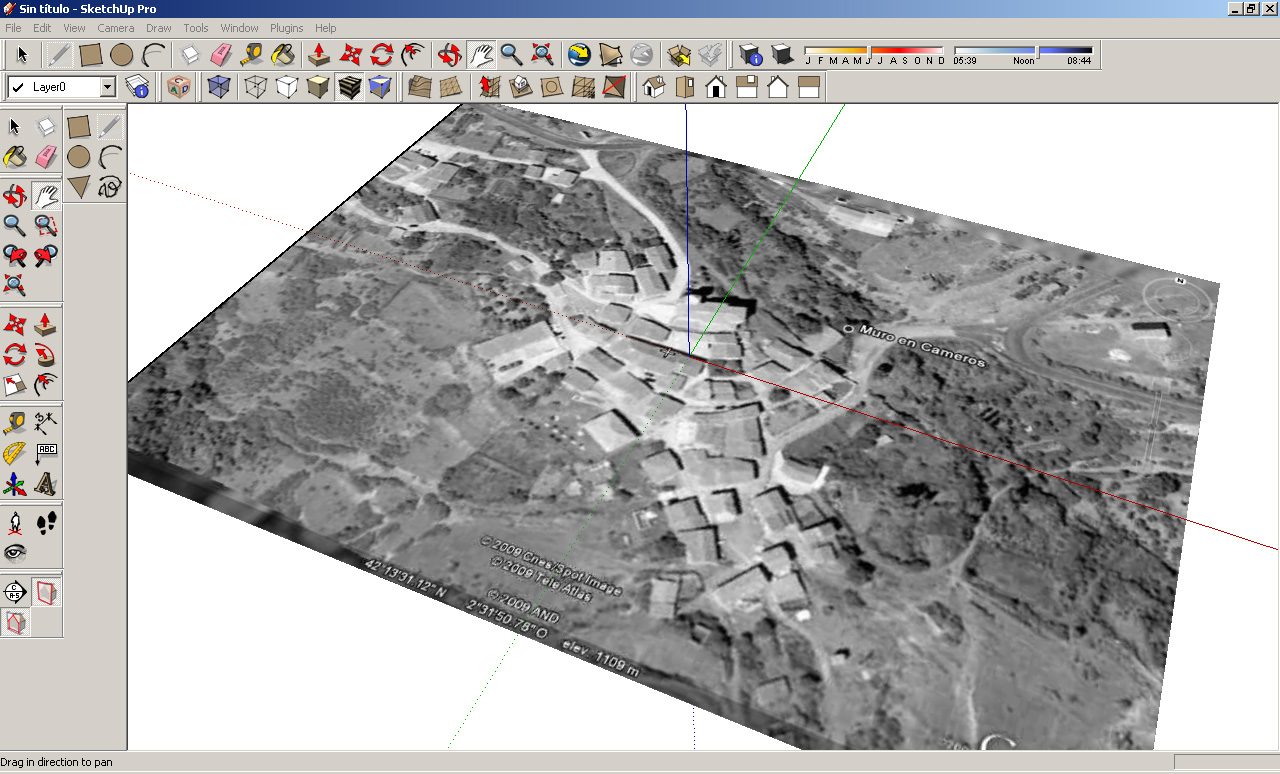

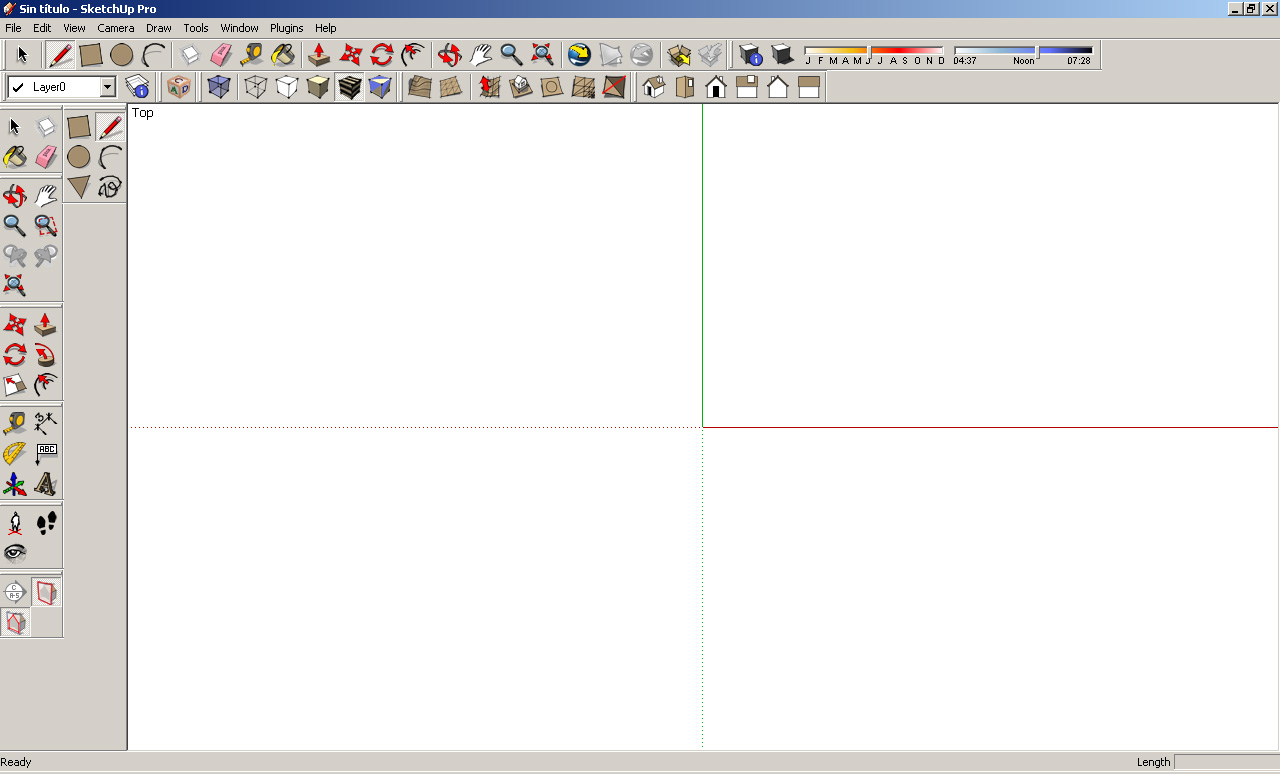

As I said in the last post now we first open SU (Sketch-up by Google) and click on ‘get current view‘… This is more or less what we will find:

Let’s start modelling…I’m not telling you here the way you should model it… I’m just telling you that It is a PIECE OF CAKE!!!!!!!… This model has thousands of pieces but I just spent about 15 hours in modelling them all…

I have used something called ‘components‘… this means that you -for instance- design a floor and later on you can repeat it as much as you want… all you change in that floor will be repeated in the rest of them… didn’t I tell you that it was EASY???… Let’s stop saying nonsense and check it out!

Now let’s texture it!. As this is not an architectural model, this is just a building we want to visualize in our 3D scenery (now you know something else about geovisualization, nothing to do with Architecture as you can deduce from it)… we have just used a few textures (less than 5, more than 2…a few! I told you!).

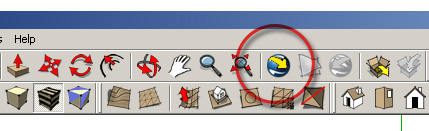

Now that we have just added textures all we have to do is clicking on ‘place model‘ in our SU:

And finally switching to our GE to check it out…

Exactly georreferenced at 40°24’21.08″ N – 3°37’30.22″ W…

Do you like it?. It’s not that difficult isn’t it?. Do you dare to do something similar in your country… I’m sure yes!.
